Multipurpose HAG - Coal, Wood & Diesel

The Multi-Purpose Hot Air Generator (HAG) offers a versatile heating solution for various applications. It can be fueled by wood, coal churi (crushed coal), or diesel/FO (fuel oil). The system features an indirect fired design with a double-walled heat exchanger for efficient and safe heat transfer. Depending on the chosen fuel option, the HAG delivers a capacity of 8 to 12 lakh Kilo Calories per hour, with adjustable hot air temperatures ranging from 110°C to 120°C. The unit includes a chimney, ID fan (7.5 HP motor), and FD fan (2 HP motor) for optimal combustion and air control. While the footprint varies depending on the fuel type (coal churi or diesel/FO), the overall weight is approximately 25 metric tons. An optional diesel burner attachment is also available for added flexibility.

Overview

1. Coal Churi:

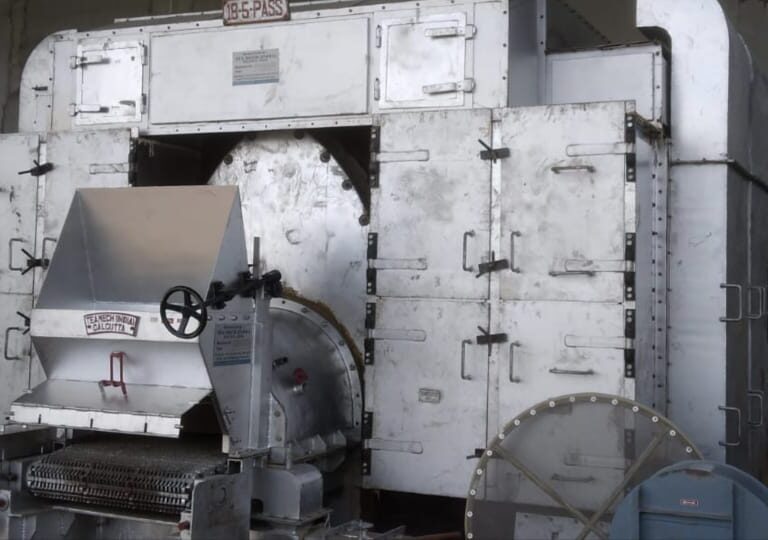

Model 18/5 Pass with indirect firing
Capacity: 8 to 12 lakh Kilo Cal/Hr
Includes double-walled heat exchanger, firing chamber, multi-tube heat exchanger (five pass), air mixing chamber, foundation plate
Coal churi consumption: 140 to 160 kg/hr (at room temperature 30°C, hot air temperature 120°C)
Chimney diameter: 30" (self-supported)
ID fan: 7.5 HP motor
FD fan: 2 HP motor
Uniform coal feeding system
Total power: 15 HP

2. Diesel or FO as base fuel:

Model 20/5 Pass with indirect firing
Capacity: 8 to 12 lakh Kilo Cal/Hr
Includes double-walled heat exchanger, firing chamber, multi-tube heat exchanger (five pass), air mixing chamber, foundation plate (Note: "wood consumption" is a mistake, likely referring to fuel oil consumption)
Fuel oil consumption (HSD): 80 to 100 liters/hr (at room temperature 30°C, hot air temperature 110°C)
Chimney diameter: 30" (self-supported)
ID fan: 7.5 HP motor
FD fan: 2 HP motor
Total floor area required: 30' x 30'

3. Diesel Burner:

- Trolley-mounted burner attachment for additional flexibility
- Can be used as needed by positioning the trolley near the HAG fire door
- Burner operation starts upon firing the burner shell and activating the air and oil lines (connected with flexible joints)
- Provides heat energy for the dryer
- Diesel fuel consumption (HSD): approximately 80 to 100 liters/hr (at room temp. 30°C, hot air temp. 120°C)

Features

1. Robust Design: This machine boasts a robust design, minimizing the potential for operational failures.
2. Multi-Fuel Capability: The system offers the flexibility to utilize various heat sources, providing greater operational adaptability.
3. Easy Operation: The machine can be operated by semi-skilled labor, reducing reliance on highly specialized personnel.
4. Simplified Maintenance: Basic replacement of parts and routine maintenance can be performed on-site, minimizing downtime.: Basic replacement of parts and routine maintenance can be performed on-site, minimizing downtime.
