Fine Cleaner & Double Aspirator

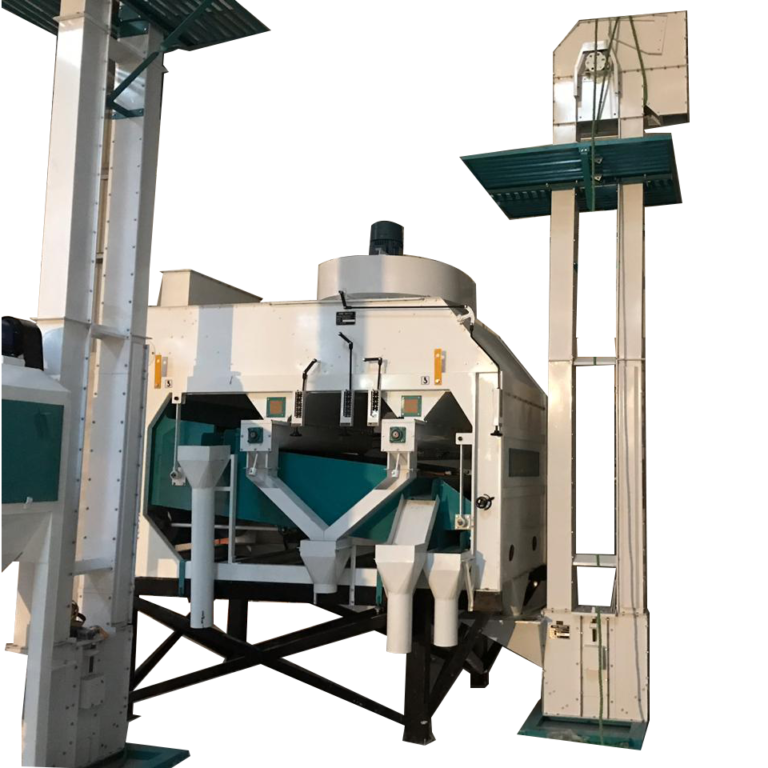

Built for heavy-duty use, the machine's frame supports a vibrating MTRA body. Material flows precisely across a uniform space, allowing the initial air suction to capture light husk contamination. A single, high-efficiency blower at both ends optimizes power while removing both light and heavy impurities. Finally, material travels over a large MTRA double sieve for overflow and underflow rejection, ensuring consistent product across a wide working area. Supporting ducting and a cyclone (optional) complete the cleaning system.

Overview

This double-sorting fine cleaner air classifier unit provides exceptional control over both material intake and discharge. The system utilizes a powerful air pressure control system for optimal separation. Featuring a multi-deck MTRA vibratory motor base, this machine delivers efficient cleaning. With a capacity of 2.5 metric tons per hour, the double-deck sieve cleaning system incorporates a top overflow sieve and a bottom underflow sieve. A cyclone with a 5HP blower and ducting line, all mounted on a mild steel stand, completes this comprehensive cleaning solution.

Features

  1. Double Air Classifier System: This feature incorporates air classifiers at both the input and output stages, ensuring precise separation of impurities.
  2. Heavy-Duty Frame Construction: The machine boasts a robust frame designed to withstand demanding operation.
  3. Low-Maintenance Operation: The MTRA sieve cleaning system employs a vibrating motor, minimizing maintenance requirements.
  4. Multi-Stage Rejection System: The machine effectively removes impurities of various sizes, including very light and light materials, overflow, and underflow rejects.

Model No.

PC2

Material

Body in MS Fabrication

Grading Capacity

1.5 - 2.0 MT/HR on Sesame Seed
